Hardware Interfaces

• RJ-11 VDSL port

• 10/100/1000BASE-T WAN port

• 4 10/100BASE-TX LAN ports

• USB 2.0 port

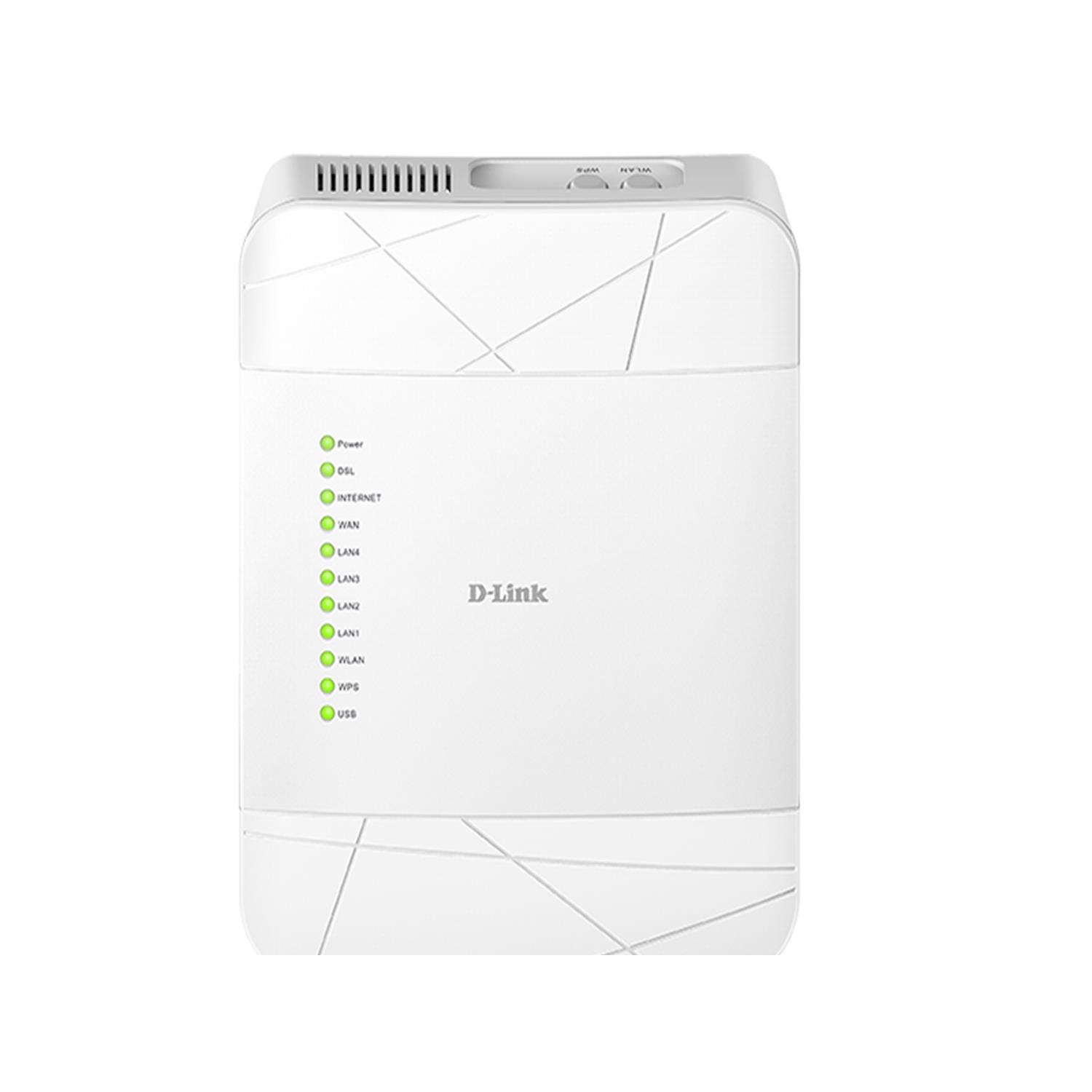

LEDs

• Power

• 4 LAN LEDs

• WLAN

• WPS

• USB

• DSL/WAN

• Internet

Buttons

• SWITCH button to power on/power off

• RESET button to restore factory default settings

• WPS button to set up secure wireless connection

• WLAN button to enable/disable wireless network

Antenna

• Two internal omnidirectional antennas

MIMO

• 2 x 2

Power connector

• Power input connector (DC)

VDSL/ADSL Standards

• VDSL2: ITU G.993.2, support of 8a, 8b, 8c, 8d, 12a, 12b, 17a profiles

• ADSL: Multi-mode, ANSI T1.413 Issue 2, ITU-T G.992.1 (G.dmt) Annex A, ITU-T G.992.2 (G.lite) Annex A, ITU-T G.994.1 (G.hs)

• ADSL2: ITU-T G.992.3 (G.dmt.bis) Annex A/L/M, ITU-T G.992.4 (G.lite.bis) Annex A

• ADSL2+: ITU-T G.992.5 Annex A/L/M

ATM/PPP Protocols

• Bridged and routed Ethernet encapsulation

• VC-based or LLC-based multiplexing

• ATM Forum UNI3.1/4.0 PVC (up to 8 PVCs)

• ATM Adaptation Layer Type 5 (AAL5)

• ITU-T I.610 OAM F4/F5 loopback

• ATM QoS

• PPP over ATM (RFC 2364)

• PPP over Ethernet (PPPoE)

• Keep-alive for PPP connections

WAN connection types

• 3G

• PPPoA

• PPPoE

• IPoA

• Static IP / Dynamic IP

• Bridge

Network functions

• Additional IP address for LAN interface

• DHCP server/relay

• DNS relay

• Dynamic DNS

• Static IP routing

• IGMP Proxy

• IGMP snooping

• RIP

• Support of UPnP IGD

• Support of VLAN

• Support of SIP ALG

• Channel reservation

Firewall functions

• Network Address Translation (NAT)

• Stateful Packet Inspection (SPI)

• IP filter

• MAC filter

• MAC filtering based on time of day and day of week

• URL filter

• DMZ

• Prevention of DoS attacks

• Intrusion detection system

• Virtual servers

• Port Triggering

QoS

• Interface grouping

• VLAN priority (802.1p)

USB interface functions

• USB modem

  - Auto connection to available type of supported network (3G/2G)1

  - Enabling/disabling PIN code check, changing PIN code2

• USB storage

  - Print server

  - Access to storage via accounts

  - Built-in Samba server

Management

• Local and remote access to settings through TELNET/WEB (HTTP)

• Multilingual web-based interface for configuration and management

• Firmware update via web-based interface

• Automatic notification on new firmware version

• Saving/restoring configuration to/from file

• Support of remote logging

• SNMP agent

• Automatic synchronization of system time with NTP server and manual time/date setup

• Ping function

• TR-069 client

Wireless Module Parameters

Standards

• IEEE 802.11b/g/n

Frequency range

• 2400 ~ 2483.5MHz

Wireless connection security

• WEP

• WPA/WPA2 (Personal)

• МАС filter

• WPS (PBC/PIN)

Advanced functions

• Advanced settings

Wireless connection rate

• IEEE 802.11b: 1, 2, 5.5, and 11Mbps

• IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48, and 54Mbps

• IEEE 802.11n: from 6.5 to 300Mbps (from MCS0 to MCS15)

Transmitter output power

The maximum value of the transmitter output power depends upon the radio frequency regulations applied in your country

• 802.11b (typical at room temperature 25 °C) 16dBm

• 802.11g (typical at room temperature 25 °C) 14dBm

• 802.11n (typical at room temperature 25 °C) 14dBm

Receiver sensitivity

• 802.11b (typical at room temperature 25 °C) -86dBm

• 802.11g (typical at room temperature 25 °C) -72dBm

• 802.11n (typical at room temperature 25 °C):

  HT20: -67dBm

  HT40: -65dBm

נתונים פיזיים

Dimensions

• 155 x 150 x 60 mm (6.1 x 5.9 x 2.4 in)

Weight

• 242 g (0.53 lb)

Power

• Output: 12V DC, 1A

Temperature

• Operating: from 0 to 45 °C

• Storage: from -20 to 70 °C

Humidity

• From 5% to 95% (non-condensing)
