נתוני לוח

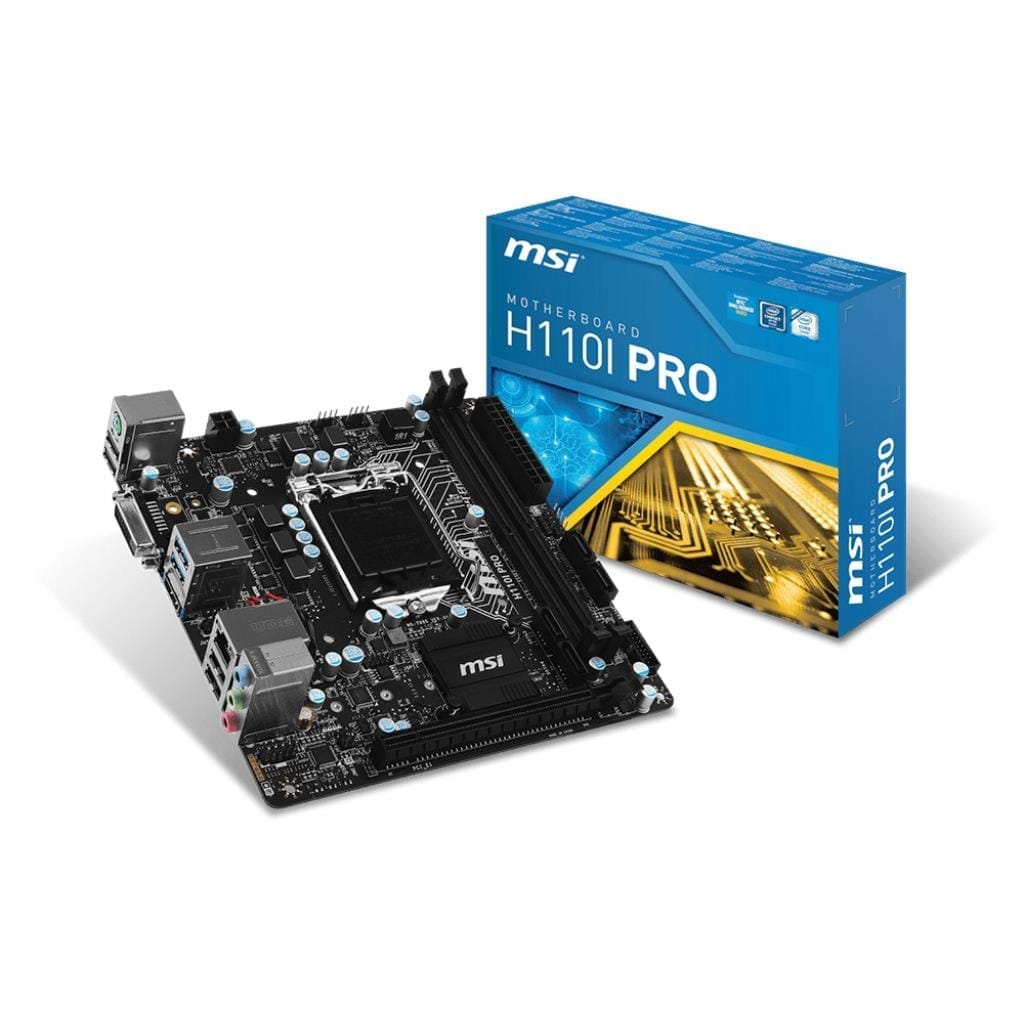

- תושבת מעבד:H110I
- ערכת שבבים:1151
- סוג לוח:MINI ITX
- תמיכה במעבדים: i3 / i5 / i7
- זכרון:DDR4 2133Mhz
- Audio:7.1Ch 3Ports
- חריצי זכרון:2
- SATA3:4
- M2:1
- Audio chip:Azalia Realtek ALC887
- LAN chip:Realtek 8111H Gb LAN controller
אספקה מהירה
שרות מקצועי
אחריות יבואן רשמי
אתר מאובטח SSL
אחריות 3 שנים על ידי היבואן הרשמי.
CPU
- Supports 6th Gen Intel® Core™ i3/i5/i7 processors, and Intel® Pentium® and Celeron® processors for Socket LGA1151
- * Please refer to CPU Support for compatible CPU; the above description is for reference only.
Chipset
- Intel® H110 Chipset
Main Memory
- 2 x DDR4 memory slots, support up to 32GB
- - Supports DDR4 2133 MHz
- Dual channel memory architecture
- Supports Intel® Extreme Memory Profile (XMP)
- * Please refer to Compatibility reports for more information of compatible memory.
* DDR4 2133 MHz and higher memory modules will only run at maximum of DDR4 2133 MHz on XMP mode due to Intel® chipset limitation
Slots
- 1 x PCIe 3.0 x16 slot
Onboard Graphics
- 1x HDMI™ port, supports a maximum resolution of 4096x2160@24Hz, 2560x1600@60Hz
- - Support for HDMI™ 1.4 version.
- 1 x DVI-D port, supports a maximum resolution of 1920x1200@60Hz
On-Board SATA
- 4 x SATA 6Gb/s ports
- 1 x M.2 Key M Socket supports type 2280/2260/2242 storage devices in PCIE Gen2 x 4 mode on the back side
- - supports PCIe 2.0x4 standard, 4.2cm/6cm/8cm length M.2 PCIe-interface SSD cards
USB
- Intel® H110 Chipset
- - 4x USB 3.1 Gen1 (SuperSpeed USB) ports (2 ports on the back panel, 2 ports available through the internal USB connector)
- - 6x USB 2.0 (High-speed USB) ports (4 ports on the back panel, 2 ports available through the internal USB connectors)
Audio
- Realtek® ALC887 Codec
- 7.1-Channel High Definition Audio
LAN
- 1 x Realtek RTL8111H Gigabit LAN controller
Back Panel I/O Ports
- - 1 x PS/2 keyboard/ mouse port
- - 4 x USB 2.0 ports
- - 2 x USB 3.1 Gen1 ports
- - 1 x DVI-D port
- - 1 x HDMI port
- - 1 x LAN (RJ45) port
- - 3 x audio jacks
Internal I/O Connectors
- - 1 x 24-pin ATX main power connector
- - 1 x 4-pin ATX 12V power connector
- - 4 x SATA 6Gb/s connectors
- - 1 x USB 2.0 connectors (supports additional 2 USB 2.0 ports)
- - 1 x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports)
- - 1 x 4-pin CPU fan connector
- - 1 x 4-pin system fan connectors
- - 1 x Front panel audio connector
- - 2 x Front panel connectors
- - 1 x Serial Port connector
- - 1 x Chassis Intrusion connector
- - 1 x Clear CMOS jumper
Dimension
- 6.7 in. x 6.7 in. (17.0 cm x 17.0 cm) Mini-ITX Form Factor
Mounting
- 4 mounting holes
