נתוני לוח
- תושבת מעבד:H310M
- ערכת שבבים:1151
- סוג לוח:m-ATX
- תמיכה במעבדים: i3 / i5 / i7
- זכרון:DDR4 2133-2666MHZ
- Audio:7.1Ch 3Ports
- חריצי זכרון:2
- SATA3:4
- M2:no
- Audio chip:Azalia Realtek ALC887
- LAN chip:Realtek 8111H Gb LAN controller
אספקה מהירה
שרות מקצועי
אחריות יבואן רשמי
אתר מאובטח SSL
אחריות 3 שנים על ידי היבואן הרשמי.
CPU
- Supports 8th Generation Intel® Core™ Processors, Pentium® Gold and Celeron® Processors for Socket LGA1151
- * Please refer to CPU Support for compatible CPU; the above description is for reference only.
Chipset
- Intel® H310 Chipset
Main Memory
- 2 x DDR4 memory slots, support up to 32GB
- Supports DDR4 2666/ 2400/ 2133 MHz
- Dual channel memory architecture
- Supports non-ECC, un-buffered memory
- Supports Intel® Extreme Memory Profile
Slots
- 1 x PCIe 3.0 x16 slot
- 2 x PCIe 2.0 x1 slots
Onboard Graphics
- 1 x VGA port, supports a maximum resolution of 2048x1536@50Hz, 2048x1280@60Hz, 1920x1200@60Hz
- 1 x HDMI™ port, supports a maximum resolution of 4096x2160@30H
On-Board SATA
- 4 x SATA 6Gb/s ports
USB
- 4 x USB 3.1 Gen1 (SuperSpeed USB) ports (2 Type-A ports on the back panel, 2 ports available through the internal USB connector)
- 6 x USB 2.0 (High-speed USB) ports (4 ports on the back panel, 2 ports available through the internal USB connector)
Audio
- Realtek® ALC887 Codec
- 7.1-Channel High Definition Audio
LAN
- 1 x RTL8111H Gigabit LAN controller
Internal I/O Connectors
- 1 x 24-pin ATX main power connector
- 1 x 8-pin ATX 12V power connector
- 4 x SATA 6Gb/s connectors
- 1 x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports)
- 1 x USB 2.0 connector (supports additional 2 USB 2.0 ports)
- 1 x 4-pin CPU fan connector
- 1 x 4-pin system fan connector
- 2 x Front panel connectors
- 1 x Front panel audio connector
- 1 x Serial port connector
- 1 x TPM module connector
- 1 x Chassis Intrusion connector
- 1 x Clear CMOS jumper
- 4 x EZ Debug LED
Back Panel I/O Ports
- PS/2 Combo Port
- VGA Port
- HDMI Port
- USB 3.1 Gen1
- LAN Port
- HD Audio Connectors
- USB 2.0 Port
- USB 2.0 Port

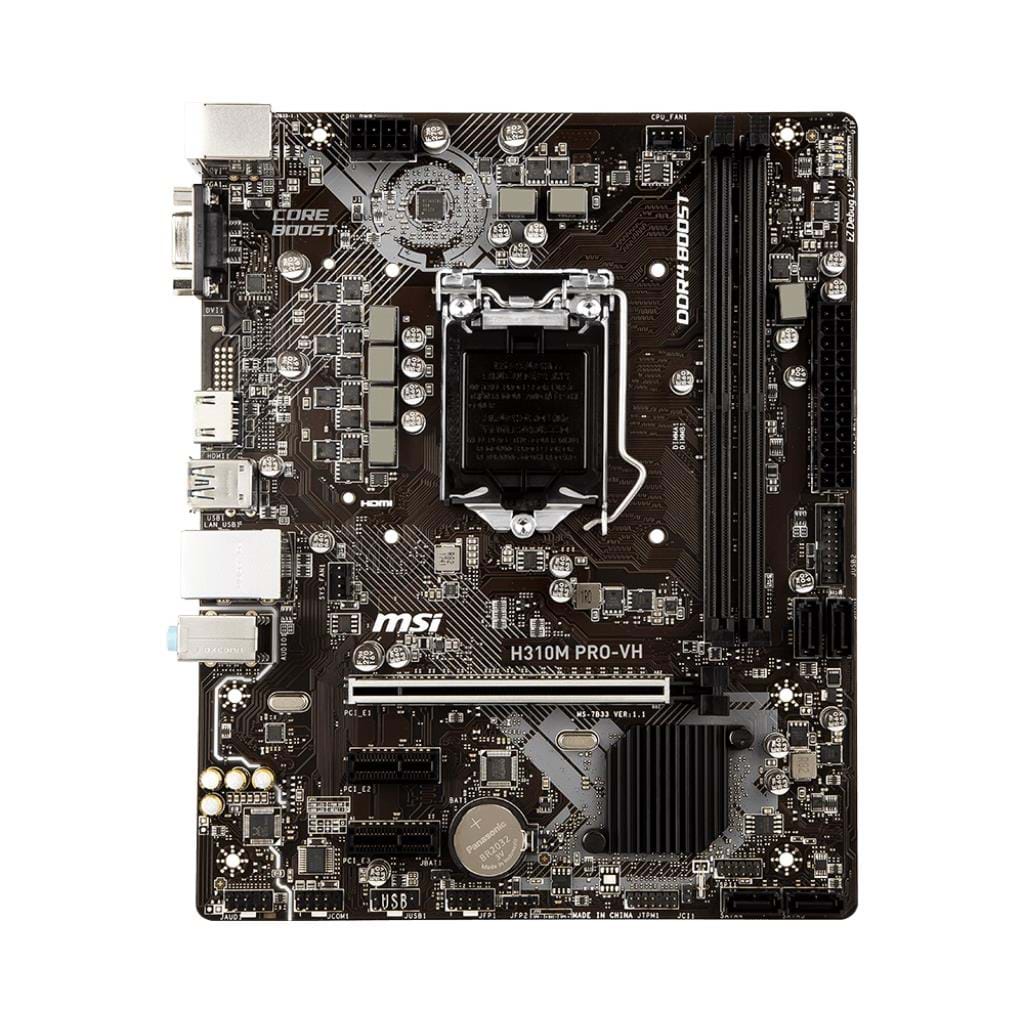

- MSI H310M PRO-VH back panel ports
Dimension
- 22.6 cm x 18.5 cm
- m-ATX Form Factor
Mounting
- 6 mounting holes
OPERATING SYSTEM
- Support for Windows® 10 64-bit
