נתוני לוח
- תושבת מעבד:H310M
- ערכת שבבים:1151
- סוג לוח:m-ATX
- תמיכה במעבדים: i3 / i5 / i7
- זכרון:DDR4 2133-2666MHZ
- Audio:7.1Ch 3Ports
- חריצי זכרון:2
- SATA3:4
- M2:1
- Audio chip:Azalia Realtek ALC887
- LAN chip:Intel I219-V
אספקה מהירה
שרות מקצועי
אחריות יבואן רשמי
אתר מאובטח SSL
אחריות 3 שנים על ידי היבואן הרשמי.
CPU
- Supports 8th Gen Intel® Core™, Pentium® Gold and Celeron® processors for Socket LGA1151
Chipset
- Intel® H310 Chipset
Main Memory
- 2 x DDR4 memory slots, support up to 32GB
- Supports DDR4 2666/ 2400/ 2133 MHz Memory
- Dual channel memory architecture
- Supports non-ECC, un-buffered memory
- Supports Intel® Extreme Memory Profile
Slots
- 1 x PCIe 3.0 x16 slots
- 2 x PCIe 2.0 x1 slots
Onboard Graphics
- 1 x DVI-D port, supports a maximum resolution of 1920x1200@60Hz
- 1 x HDMI™ port 1.4, supports a maximum resolution of 4096x2160@30Hz
On-Board SATA
- Intel® H310 Chipset
- 4 x SATA 6Gb/s ports
- 1 x M.2 slots (Key M)
- Support up to PCIe 2.0 x4 and SATA 6Gb/s
- Supports 2242/ 2260 /2280 storage devices
USB
- Intel® H310 Chipset
- 4 x USB 3.1 Gen1 (SuperSpeed USB) ports (2 Type-A ports on the back panel, 2 ports available through the internal USB connectors)
- 6 x USB 2.0 (High-speed USB) ports (4 Type-A ports on the back panel, 2 ports available through the internal USB connectors)
Audio
- Dual Realtek® ALC887 Codec
- 7.1-Channel High Definition Audio
LAN
- 1 x Intel I219-V Gigabit LAN controller
Back Panel I/O Ports
- PS/2 Combo Port
- LAN Port
- HD Audio Connectors
- USB 2.0 Port
- DVI-D Port
- HDMI
- USB 3.1 Gen1 Port
- USB 2.0 Port

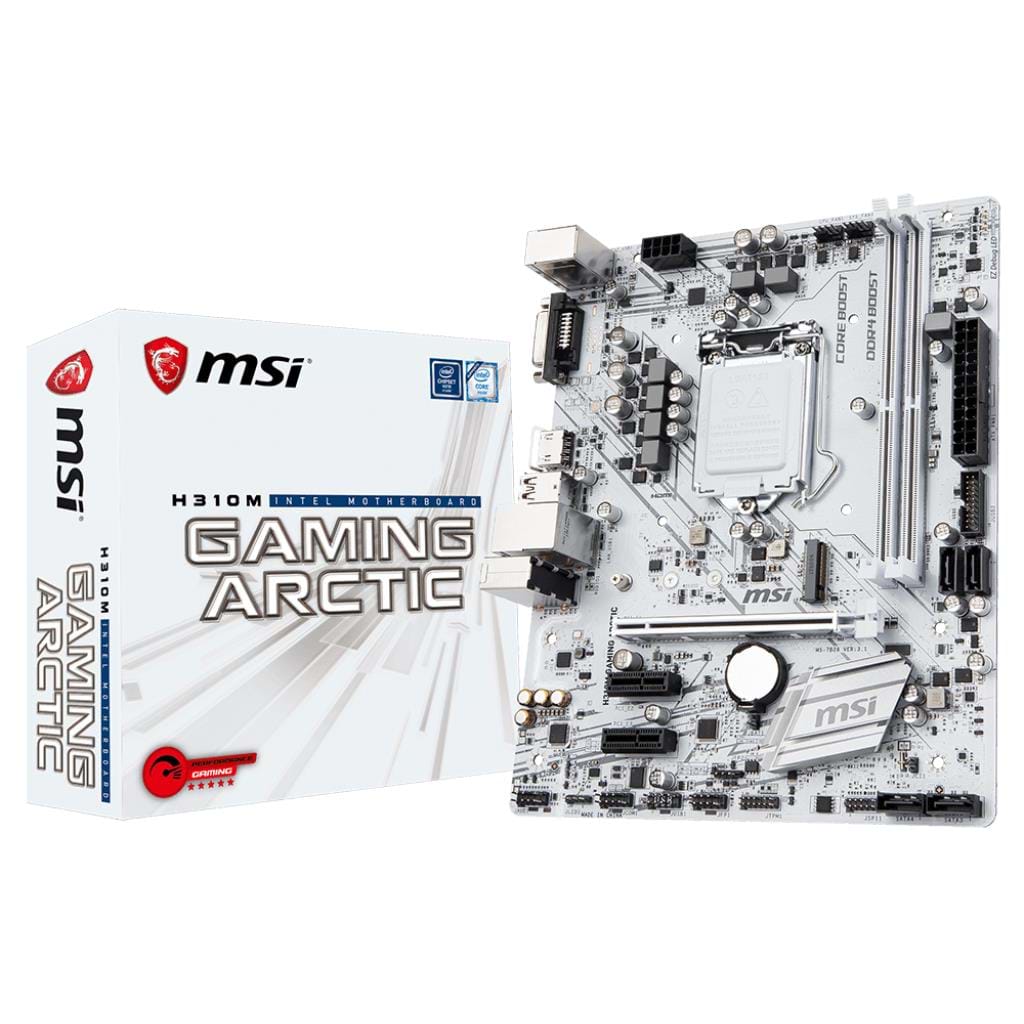

- MSI H310M GAMING ARCTIC back panel ports
Internal I/O Connectors
- 1 x 24-pin ATX main power connector
- 1 x 8-pin ATX 12V power connector
- 4 x SATA 6Gb/s connectors
- 1 x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports)
- 1 x USB 2.0 connector (supports additional 2 USB 2.0 ports)
- 1 x 4-pin CPU fan connector
- 1 x 4-pin system fan connector
- 1 x Front panel audio connector
- 1 x Serial port connector
- 2 x Front panel connectors
- 1 x TPM module connector
- 1 x Chassis Intrusion connector
- 1 x LED connector
- 1 x Clear CMOS jumper
Dimension
- 23.0 cm x 18.5 cm
- Micro-ATX Form Factor
Mounting
- 6 mounting holes
