משלוח חינם. אספקה תוך 1-5 ימי עסקים לאחר אישור ההזמנה.
קניה
הוסף לסל
נתוני לוח
- תושבת מעבד:B360M
- ערכת שבבים:1151
- סוג לוח:m-ATX
- תמיכה במעבדים: i3 / i5 / i7
- זכרון:DDR4 2133-2666MHZ
- Audio:7.1Ch 3Ports
- חריצי זכרון:2
- SATA3:6
- M2:1
- Audio chip:Azalia Realtek ALC887
- LAN chip:Intel I219-V
אספקה מהירה
שרות מקצועי
אחריות יבואן רשמי
אתר מאובטח SSL
אחריות 3 שנים על ידי היבואן הרשמי.
CPU
- Supports 8th Gen Intel® Core™, Pentium® Gold and Celeron® Processors for Socket LGA1151
Chipset
- Intel® B360 Chipset
Main Memory
- 4 x DDR4 memory slots, support up to 64GB
- Supports DDR4 2666/ 2400/ 2133 MHz1
- Dual channel memory architecture
- Supports non-ECC UDIMM memorye
- Supports Intel® Extreme Memory Profile
Slots
- 2 x PCIe 3.0 x16 slots (support x16/x4 modes)
- 4 x PCIe 3.0 x1 slots
Onboard Graphics
- 1 x DisplayPort 1.2, supports a maximum resolution of 4096x2304@60Hz
- 1 x DVI-D port, supports a maximum resolution of 1920x1200@60Hz
STORAGE
- Intel® B360 Chipset
- 5 x SATA 6Gb/s ports1
- 1 x M.2 slots (Key M)
- Support up to PCIe 3.0 x4 and SATA 6Gb/s
- Supports 2242/ 2260 /2280/ 22110 storage devices
- Supports Intel® Optane™ Memory Ready2
USB
- Intel® B360 Chipset
- 2 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) ports (1 Type-A port and 1 Type-C port on the back panel)
- 4 x USB 3.1 Gen1 (SuperSpeed USB) ports (2 ports on the back panel, 2 ports available through the internal USB connectors)
- 6 x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB connectors)
Audio
- Dual Realtek® ALC892 Codec
- 7.1-Channel High Definition Audio
LAN
- 1 x Intel I219-V Gigabit LAN controller
Back Panel I/O Ports
- PS/2 Combo Port
- LAN Port
- HD Audio Connectors
- USB 2.0 Port
- DVI-D
- DisplayPort
- USB 3.1 Gen2 Type A + C
- USB 3.1 Gen1

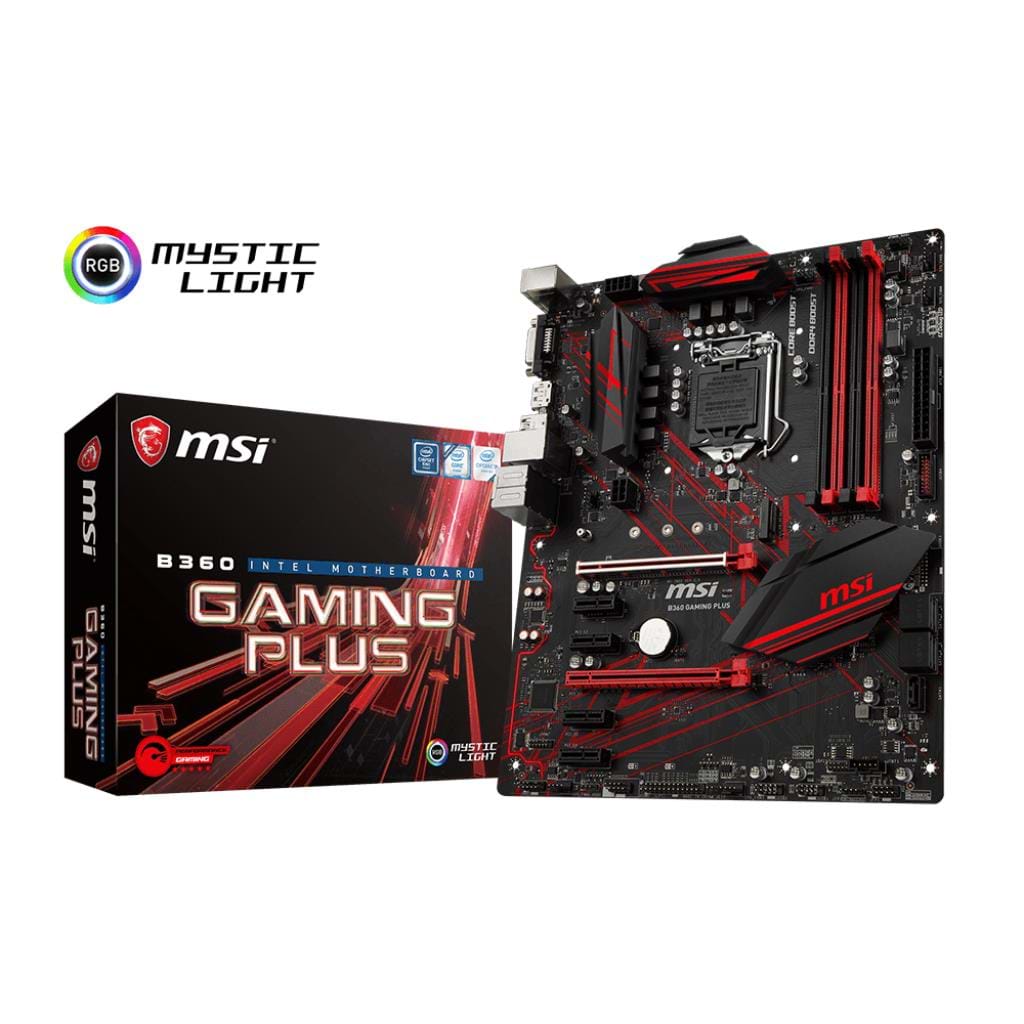

- MSI B360 GAMING PLUS back panel ports
Internal I/O Connectors
- 1 x 24-pin ATX main power connector
- 1 x 8-pin ATX 12V power connector
- 1 x 6-pin ATX PCIe power connector
- 5 x SATA 6Gb/s connectors
- 1 x USB 3.1 Gen1 connectors (supports additional 2 USB 3.1 Gen1 ports)
- 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
- 1 x 4-pin CPU fan connector
- 1 x 4-pin water pump fan connector
- 5 x 4-pin system fan connectors
- 1 x Front panel audio connector
- 2 x Front panel connectors
- 1 x Series port connector
- 1 x Parallel port connector
- 1 x 5050 RGB LED strip 12V connector
- 1 x TPM module connector
- 1 x Thunderbolt Add-on Card Connector
- 1 x Chassis Intrusion connector
- 1 x Clear CMOS jumper
Dimension
- 30.4 cm x 24.3 cm
- ATX Form Factor
Mounting
- 9 mounting holes
OPERATING SYSTEM
- Support for Windows® 10 64-bit
